Cat 6 U/FTP 23AWG
Application
These Cat6 U/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class
E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to
250MHz.
Standards
EN 50288
ISO 11801
IEC 61156-5
IEC 60332-1
IEC 60754-1/2
IEC 61034

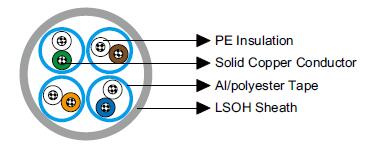

Construction
Conductors: Solid bare copper conductor.
Insulation: PE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Individual Screen: Al/polyester tape.
Outer Sheath: LSOH.
Core Identification
Pair 1: White, Blue Pair
2: White, Orange Pair
3: White, Green Pair
4: White, Brown
Electrical Properties
Characteristic Impedance(1-250MHz) |
Ω |
100±15 |
Nominal Velocity of Propagation(NVP) |
|
69% |
Maximum Mutual Capacitance |
nF/100m |
5.6 |
Maximum Capacitance Unbalance |
pF/100m |
330 |
Maximum Resistance Unbalance |
|
3% |
Maximum Propagation Delay Skew(1-125MHz) |
ns/100m |
30 |
Maximum Propagation Delay@100MHz |
ns/100m |
536 |
Nominal Transmission Characteristics @20℃
FREQ |
NEXT |
Attenuation |
RL |
ACR |
ELFEXT |
PSNEXT |
PSACR |
PSELFEXT |
MHz |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
1.0 |
74.3 |
2.0 |
20.0 |
72.2 |
67.8 |
72.3 |
70.2 |
64.8 |
4.0 |
65.3 |
3.8 |
23.0 |
61.4 |
55.8 |
63.3 |
59.5 |
52.8 |
8.0 |
60.8 |
5.3 |
24.5 |
55.4 |
49.7 |
58.8 |
53.5 |
46.7 |
10.0 |
59.3 |
6.0 |
25.0 |
53.3 |
47.8 |
57.3 |
51.3 |
44.8 |
16.0 |
56.2 |
7.6 |
25.0 |
48.6 |
43.7 |
54.2 |
46.6 |
40.7 |
20.0 |
54.8 |
8.5 |
25.0 |
46.3 |
41.8 |
52.8 |
44.3 |
38.8 |
25.0 |
53.3 |
9.5 |
24.3 |
43.8 |
39.8 |
51.3 |
41.8 |
36.8 |
31.3 |
51.9 |
10.7 |
23.6 |
41.1 |
37.9 |
49.9 |
39.1 |
34.9 |
62.5 |
47.4 |
15.4 |
21.5 |
31.9 |
31.9 |
45.4 |
29.9 |
28.9 |
100.0 |
44.3 |
19.8 |
20.1 |
24.4 |
27.8 |
42.3 |
22.4 |
24.8 |
200.0 |
39.8 |
29.0 |
18.0 |
10.6 |
21.8 |
37.8 |
8.6 |
18.8 |
250.0 |
38.3 |
32.8 |
17.3 |
5.3 |
19.8 |
36.3 |
3.3 |
16.8 |
300.0 |
37.1 |
36.4 |
16.8 |
0.5 |
18.3 |
35.1 |
-1.5 |
15.3 |
350.0 |
36.1 |
39.8 |
16.3 |
-3.8 |
16.9 |
34.1 |
-5.8 |
13.9 |
400.0 |
35.3 |
43.0 |
15.9 |
-7.9 |
15.8 |
33.3 |
-9.9 |
12.8 |
450.0 |
34.5 |
46.3 |
15.5 |
-10.5 |
14.7 |
32.5 |
-12.5 |
11.7 |
500.0 |
33.8 |
48.9 |
15.2 |
-15.3 |
13.8 |
31.8 |
-17.3 |
10.8 |
550.0 |
33.2 |
51.8 |
14.9 |
-18.6 |
12.9 |
31.2 |
-20.6 |
9.9 |
600.0 |
32.4 |
54.5 |
14.7 |
-21.9 |
12.2 |
30.6 |
-23.9 |
9.2 |
* Data for 250MHz above are for reference only
Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation);
4×OD (fixed installed) Temperature Range: -20℃ ~ +60℃
Dimensions and Weight
Part No. |
Construction |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight kg/km |
MLN-U/FTPCAT64P23 |
4×2×23AWG |
0.23 |
0.63 |
7.5 |
61 |
